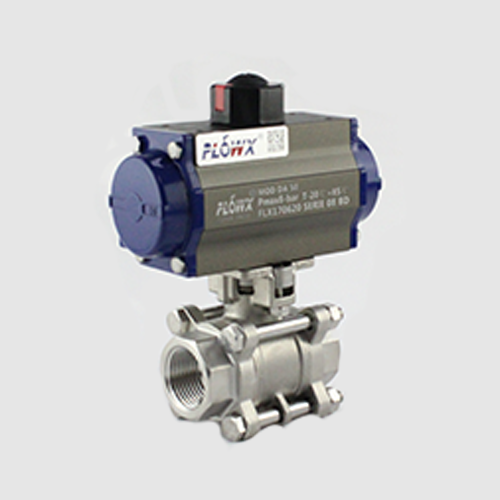

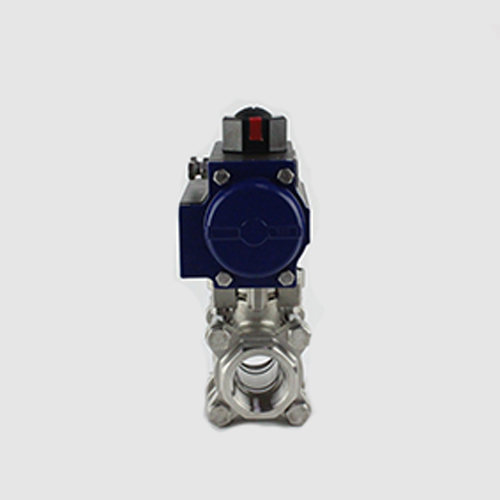

Pneumatic Threaded Ball Valve





-Size：DN15~DN50
-Connection standard：PN10/16, ANSI150, DIN16, JIS10K, 16K
-Working temperature：-15~220℃
-Working pressure：PN10~PN100
-Body：WCB、SS304、SS316、color plating carbon steel
-Ball：WCB、SS304、SS316、color plating carbon steel
-Seat：PPL、PTFE
-Medium：Water，Steam，Oil
-Operating：Pneumatic

Ordering hotline：021-54150349

Immediately consult

Product introduction
Product parameters

Threaded ball valves are connected by threads, which are divided into internal threads and external threads. They have good sealing performance, can be disassembled and replaced, and have long service life.

4. Body
5. Ball
6. Seat
9. Anti-static device
10. Stem
11. Thrust washer
12. O-ring
13. Packing
14. Packing ring
